Core Processes

Primary Sheet Metal Workflows

From high-precision laser profiling to complex assembly, our advanced sheet metal fabrication workflows deliver production-grade accuracy.

0.5mm - 10mm

Precision Laser Cutting

High-power laser beam profiling for flat shapes with standard material thicknesses from 0.5mm to 10mm.

Max Thickness 10.0 mm

Min Thickness 0.5 mm

Dimensional Accuracy ±0.1 mm

Explore Laser Solutions

0.5mm - 6mm

Press Brake Bending

Industrial punch and die tooling to form highly accurate angular bends in sheets from 0.5mm to 6mm thick.

Max Thickness 6.0 mm

Min Thickness 0.5 mm

Tooling Type Punch & Die

Explore Bending Solutions

PEM & Welding

Assembly & Hardware

Full support for finishing services, including the installation of PEM self-clinching inserts and custom multipart welding.

Hardware Type PEM Self-Clinching

Welding Services Multipart & Custom

Finishing Support Full Integration

Explore Assembly Solutions

Precision Standards

Sheet Metal Fabrication Tolerances

Our state-of-the-art machinery operates under strict dimensional controls to ensure consistent, high-accuracy results for every part.

±0.2 mm

Cutting Features

Standard dimensional tolerance for laser-cut profiles, internal cutouts, and flat shapes.

± 0.0078"

±1.0°

Bend Angles

Standard angular tolerance for press brake bending across standard material thicknesses.

Standard Angular

±0.254 mm

Bend-to-Edge Distance

Standard tolerance for the distance between a formed bend and adjacent cut features or edges.

± 0.010"

Capabilities Preview

Materials & Finishing

Explore our upcoming selection of high-grade metals and industrial surface finishes engineered for durability and performance.

Supported Materials

Aluminum

Lightweight, high strength-to-weight ratio, and excellent corrosion resistance. Ideal for structural and aerospace parts.

Aluminum 5052 Aluminum 6061

Stainless Steel

Exceptional tensile strength, temperature resistance, and corrosion protection. Perfect for medical, marine, and food-grade applications.

SS 301 SS 304 SS 316 / 316L

Low Carbon Steel

Highly formable and weldable steel with excellent structural integrity. Best suited for brackets, enclosures, and general industrial parts.

Standard Grade High Formability

Copper & Brass

Superior electrical and thermal conductivity. Brass offers low friction and excellent acoustic properties for specialized components.

Copper 101 C110 Brass 260

Surface Finishes

Bead Blast

Uniform matte surface utilizing #120 grit media. Removes tooling marks and provides a clean, non-reflective satin finish.

#120 Grit Media Matte Satin

Anodized

Electrochemical process that increases corrosion and wear resistance. Available in clear or colored protective coatings, or hardcoat for extreme durability.

Type II Clear/Color Type III Hardcoat

Powder Coating

Durable, impact-resistant dry powder finish baked onto the metal surface. Available in any standard RAL code for superior aesthetics and protection.

Any RAL Code 18 - 72μm Thickness

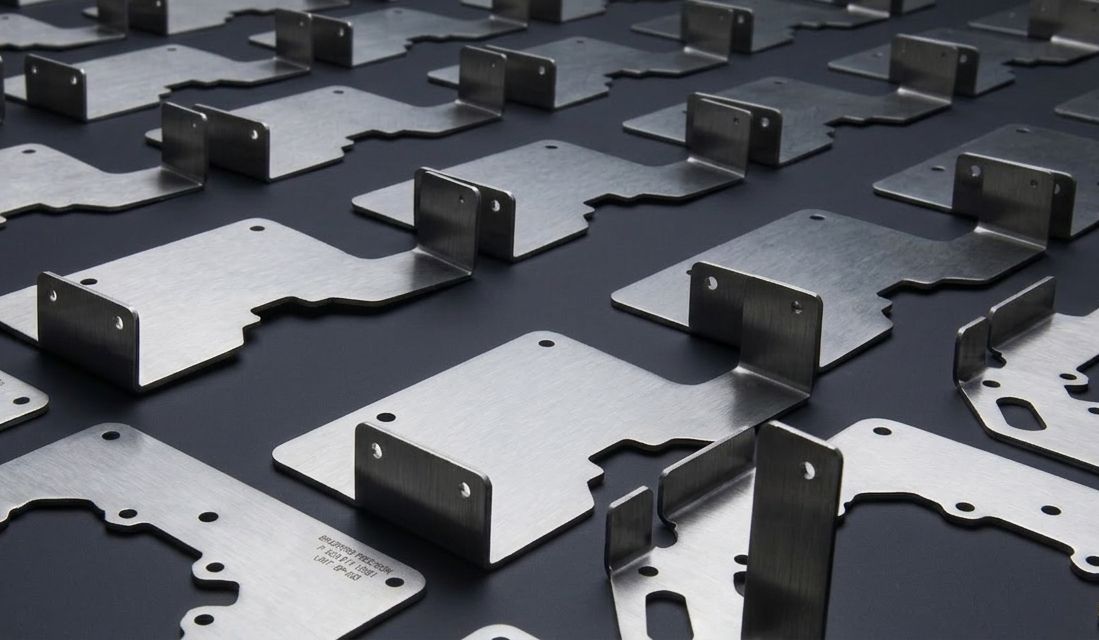

Sheet Metal Fabrication

Precision Laser Cutting & Bending — Launching Autumn 2026
